Stability Control Sensor Cluster: Notes

SPECIAL TOOLS

Illustration	Tool Name
	Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent diagnostic tool

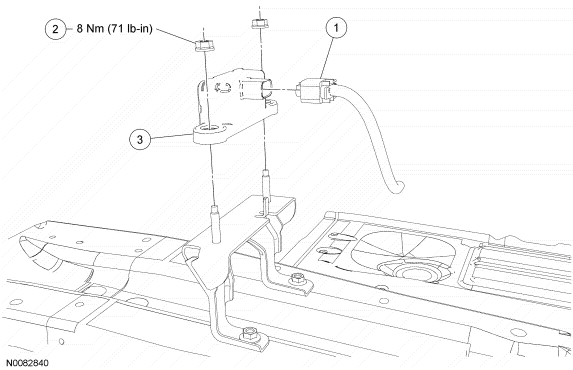

Fig 1: Locating Stability Control Sensor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	2C011	Stability control sensor cluster electrical connector
2	W707142	Stability control sensor cluster nut (2 required)
3	3C187	Stability control sensor cluster
