Dual Climate Controlled Seat Module Connector End View - C3305A

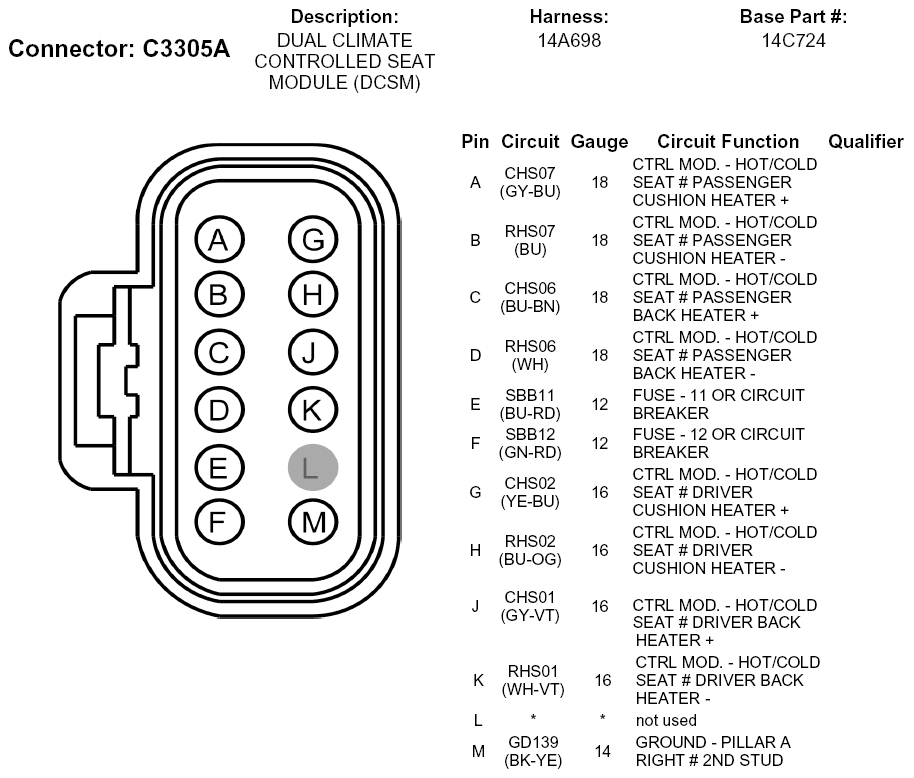

Fig 1: Dual Climate Controlled Seat Module Connector End View (C3305A)
G05770112Courtesy of FORD MOTOR CO.
