Speed Control Switch: Notes

WARNING: This page is about a different car, the 2008 Mercury Milan, 2008 Lincoln MKZ, and 2008 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Fusion shown, Milan similar.

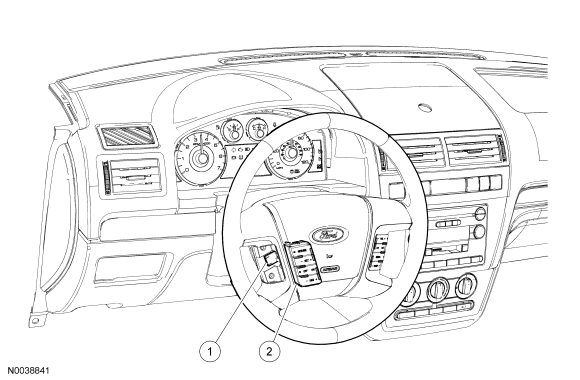

Fig 1: Exploded View Of Speed Control Switch - Fusion, Milan

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Speed control switch electrical connector (part of 14A411)
2	9C888	Speed control switch

Fig 2: Exploded View Of Speed Control Switch - MKZ

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Steering wheel controls bezel screws (4 required)
2	-	Steering wheel controls bezel
3	9C888	Speed control switch
4	-	Speed control switch electrical connector (part of 14A441)
