Safety Belt Shoulder Height Adjuster: Notes

NOTE: RH shown in illustration, LH similar.

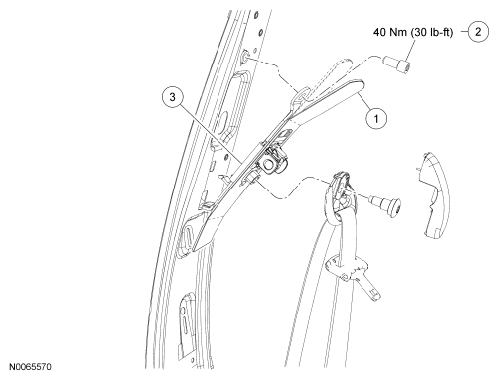

Fig 1: Safety Belt Shoulder Height Adjuster With Torque Specifications

Courtesy of FORD MOTOR CO.

PART NUMBER REFERENCE

Item	Part Number	Description
1	-	Height adjuster cover (part of 602B82)
2	-	Height adjuster bolt
3	602B82	Height adjuster
