Key Release Interlock Actuator Connector - C2139

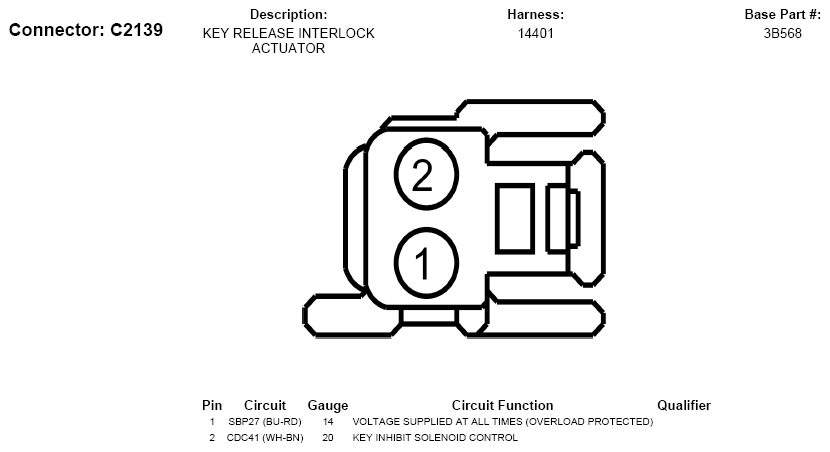

Fig 1: Key Release Interlock Actuator Connector End View (C2139)
G05746730Courtesy of FORD MOTOR CO.
