Home › Lincoln › 2010 › MKS Base, AWD › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector Views › Ambient Lighting Module Connector - C2301

Ambient Lighting Module Connector - C2301

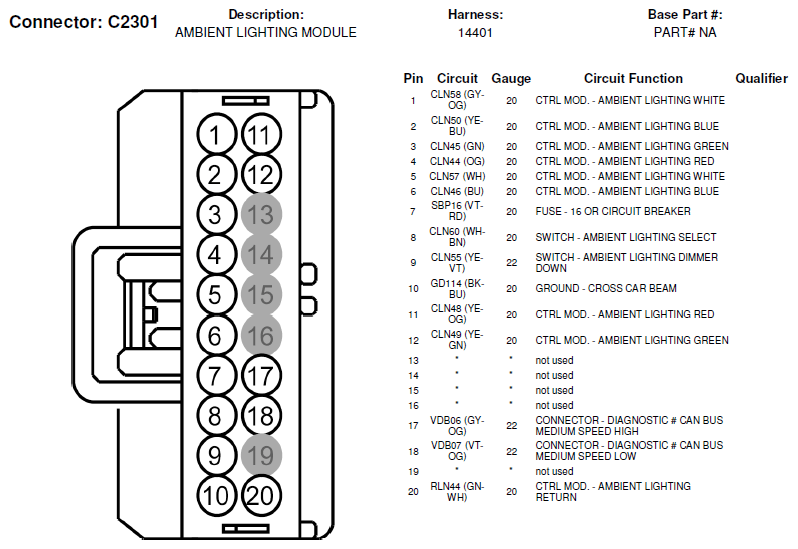

Fig 1: Ambient Lighting Module Connector End View (C2301)
G06413530Courtesy of FORD MOTOR CO.
