Collapsible Steering Column Module Connector - C2360
Collapsible Steering Column Module Connector - C2360

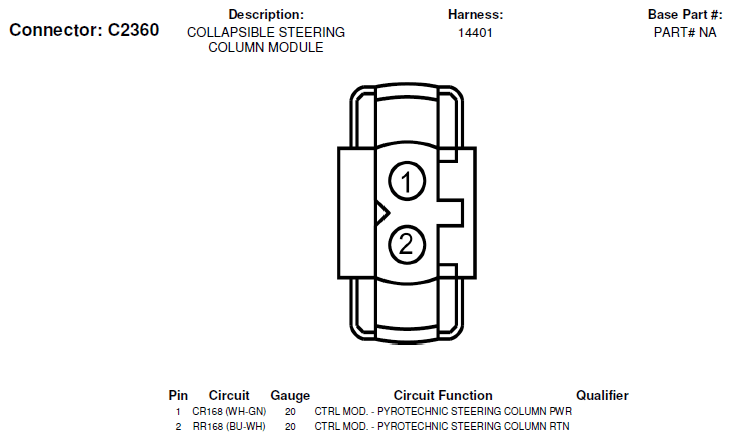

Fig 1: Collapsible Steering Column Module Connector End View (C2360)
Courtesy of FORD MOTOR CO.
