Main Control Cover - 3.5L GTDI: Installation

  1. Inspect the transaxle side cover seal for damage and install new if necessary.

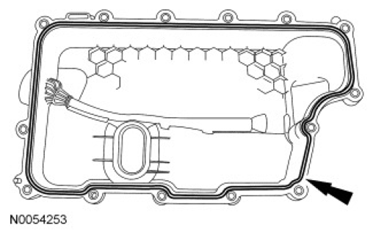

    Fig 1: Locating Main Control Cover Seal
    G06753782Courtesy of FORD MOTOR CO.
  2. NOTE: Inspect the 20-pin solenoid body connector seal to make sure that the seal is on the inside of the main control cover or a transmission fluid leak will occur.
    NOTE: Install the studbolts in the locations noted during disassembly.

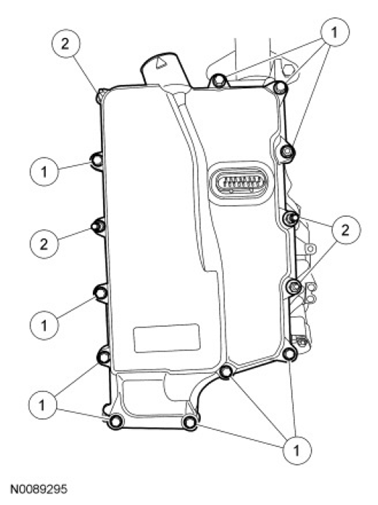

  3. Install the main control cover and loosely install the 14 bolts.
    1. Bolt location
    2. Studbolt location
      Fig 2: Identifying Main Control Cover Bolts And Studbolt
      G06753783Courtesy of FORD MOTOR CO.
  4. Tighten the main control cover bolts in the sequence shown in the illustration.
    • Tighten to 12 Nm (106 lb-in).

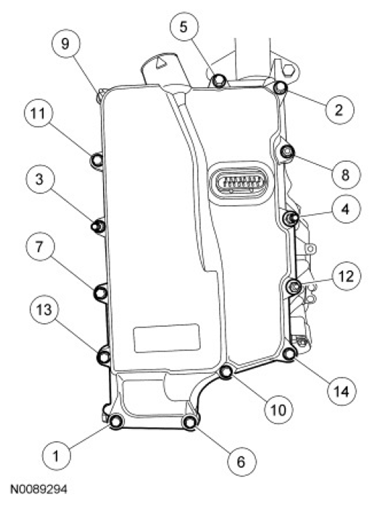

      Fig 3: Identifying Main Control Cover Bolts Tightening Sequence
      G06753784Courtesy of FORD MOTOR CO.
  5. Position the transmission fluid cooler thermal bypass valve and transmission fluid cooler tube assembly on the main control cover studbolts and install the 2 nuts.
    • Tighten to 9 Nm (80 lb-in).

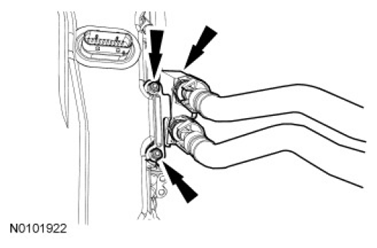

      Fig 4: Locating Transmission Fluid Cooler Thermal Bypass Valve
      G06753785Courtesy of FORD MOTOR CO.
  6. Connect the transaxle electrical connector and install the wiring harness fastener on the main control cover stud.

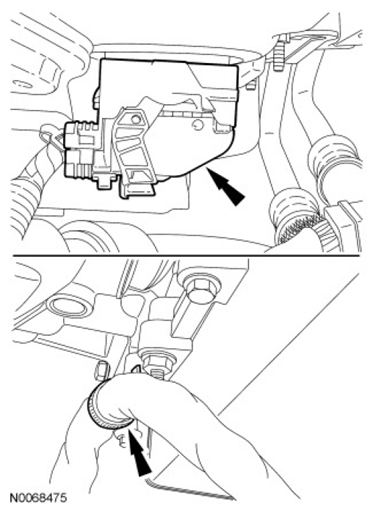

    Fig 5: Locating Transaxle Electrical Connector
    G06753786Courtesy of FORD MOTOR CO.
  7. Position the LH turbocharger-to- CAC  hose on the turbocharger and tighten the clamp.
    • Tighten to 5 Nm (44 lb-in).

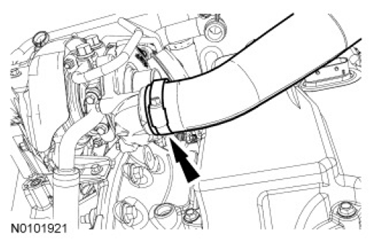

      Fig 6: Locating Charge Air Cooler Hose Clamp
      G06753787Courtesy of FORD MOTOR CO.
  8. Install the underbody shield and the 4 retainers.

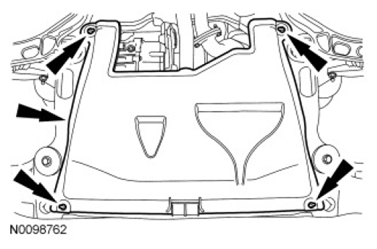

    Fig 7: Locating Retainers And Underbody Shield
    G06753788Courtesy of FORD MOTOR CO.

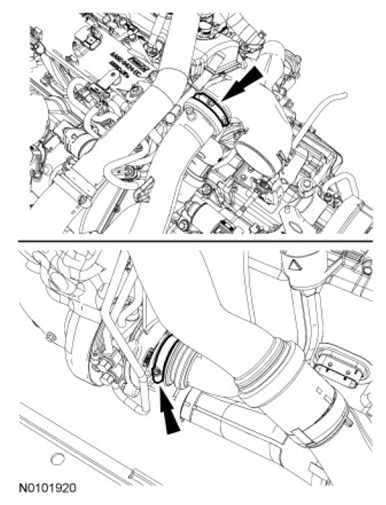

  9. Position the LH turbocharger inlet tube in place and tighten the 2 clamps.
    • Tighten to 5 Nm (44 lb-in).
      Fig 8: Locating LH Turbo Inlet Tube Clamp
      G06753789Courtesy of FORD MOTOR CO.

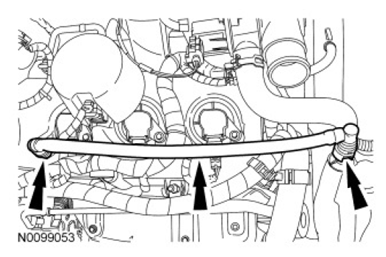

  10. Install the crankcase vent tube.
    Fig 9: Locating Quick Connect Couplings
    G06753790Courtesy of FORD MOTOR CO.

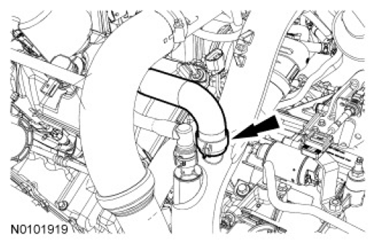

  11. Install the bypass hose on the LH turbocharger air inlet hose.
    Fig 10: Locating Constant Tension Clamp
    G06753791Courtesy of FORD MOTOR CO.
  12. Install the vacuum tube on the LH air inlet hose.

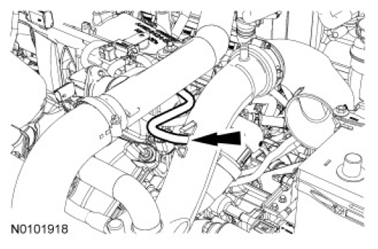

    Fig 11: Locating Vacuum Tube
    G06753792Courtesy of FORD MOTOR CO.
  13. Install the brake booster vacuum tube on the LH air inlet hose.

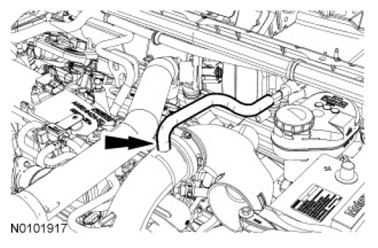

    Fig 12: Locating Brake Booster Vacuum Tube
    G06753793Courtesy of FORD MOTOR CO.
  14. Fill the transaxle with clean transmission fluid, refer to TRANSMISSION FLUID DRAIN AND REFILL .
  15. Install the ACL  and outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
