Audio Control Module Connector End View - C2253C
Audio Control Module Connector End View - C2253C

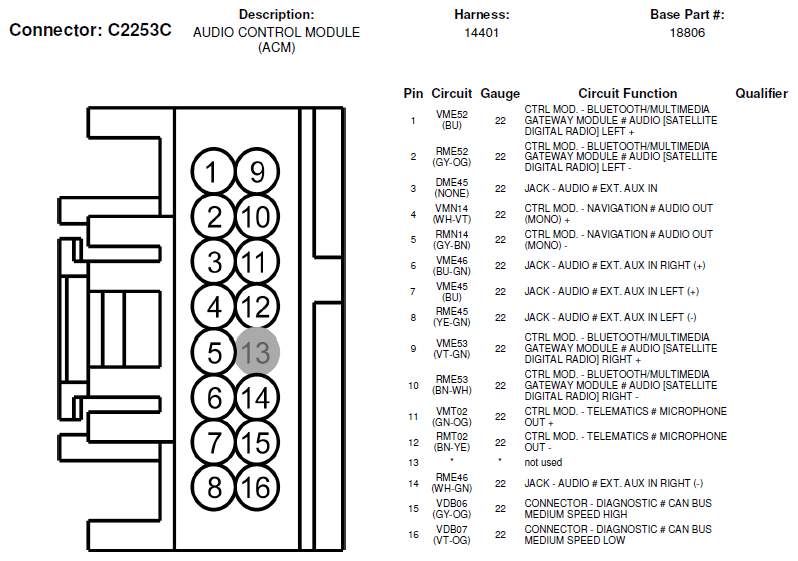

Fig 1: Audio Control Module Connector End View (C2253C)
Courtesy of FORD MOTOR CO.
