Audio Control Module Connector End View - C2253D

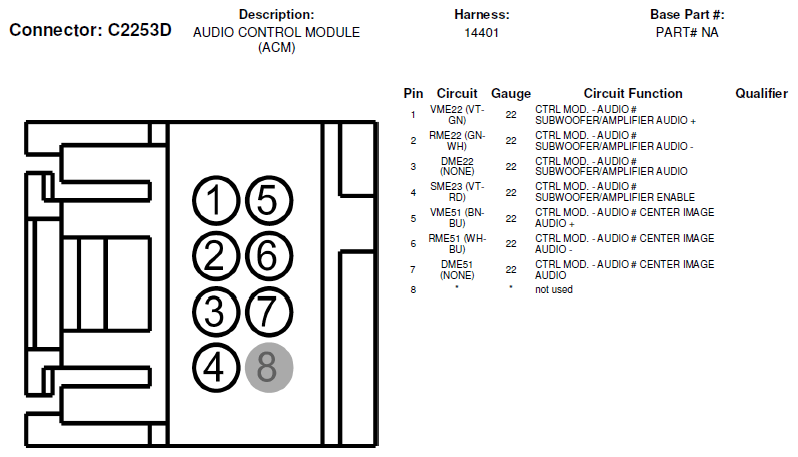

Fig 1: Audio Control Module Connector End View (C2253D)
G06413518Courtesy of FORD MOTOR CO.
