Power Steering Control Module Connector End View - C1463A

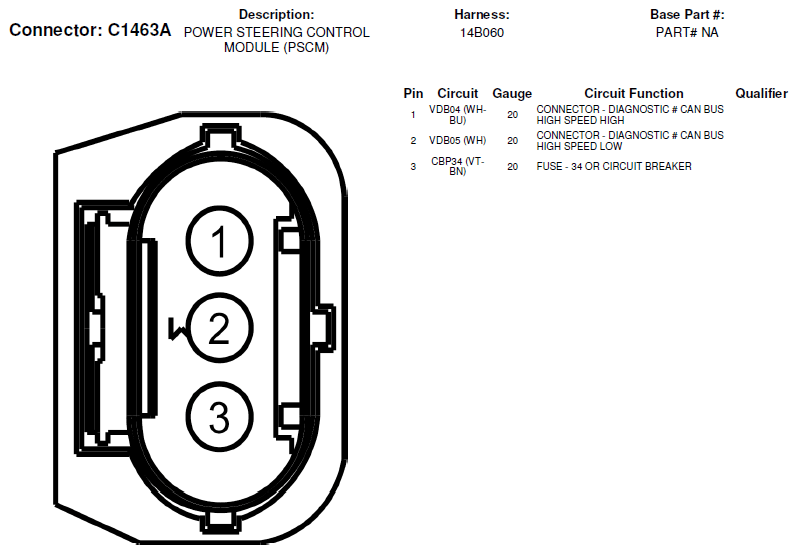

Fig 1: Power Steering Control Module Connector End View (C1463A)
G06413485Courtesy of FORD MOTOR CO.
