Powertrain Control Module Connector End View - C175B
Powertrain Control Module Connector End View - C175B

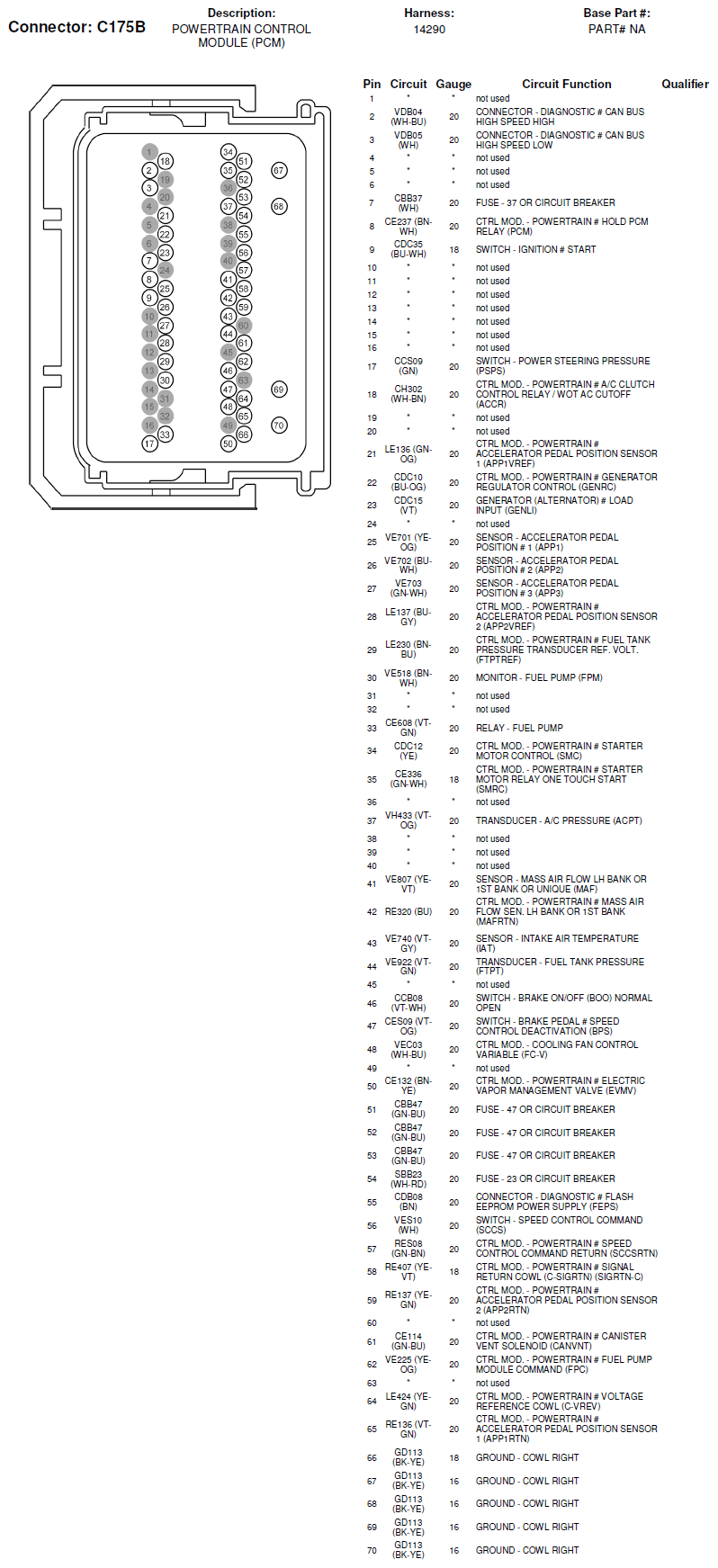

Fig 1: Powertrain Control Module Connector End View (C175B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
