Front Control Interface Module Connector End View - C2403

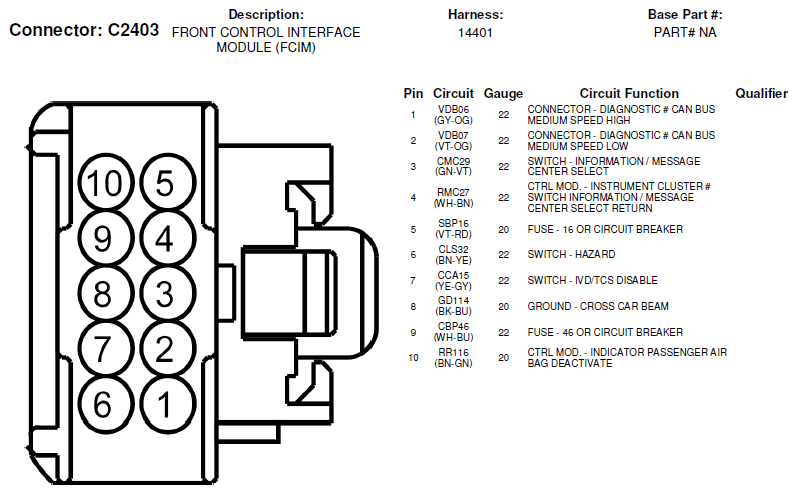

Fig 1: Front Control Interface Module Connector End View (C2403)
G06413542Courtesy of FORD MOTOR CO.
