Audio Control Module Connector
›
Audio Control Module Connector End View - C2253A
Audio Control Module Connector End View - C2253A

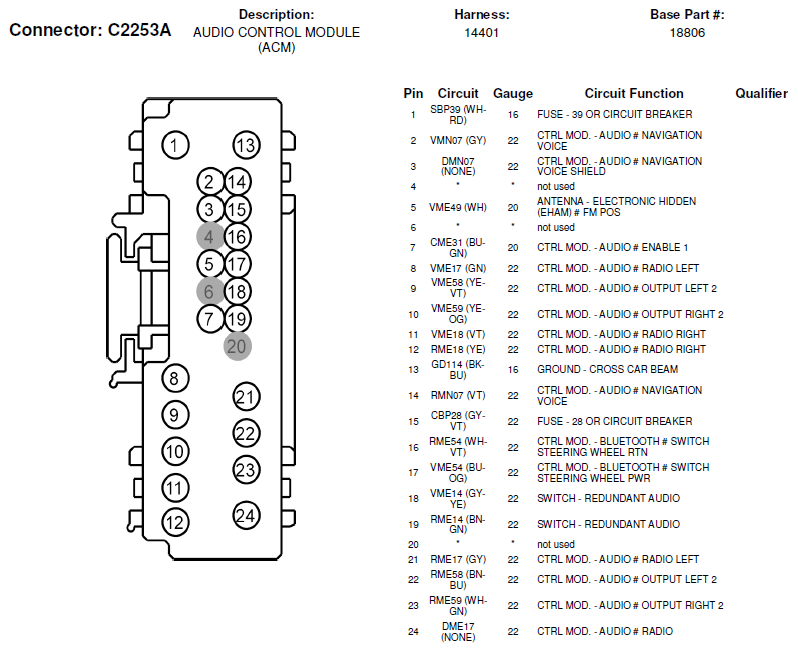

Fig 1: Audio Control Module Connector End View (C2253A)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
