Audio Control Module Connector End View - C2253B

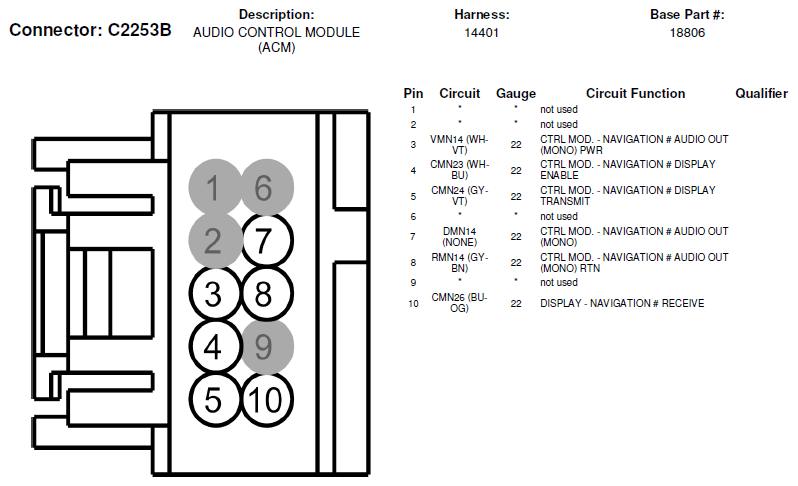

Fig 1: Audio Control Module Connector End View (C2253B)
G06413516Courtesy of FORD MOTOR CO.
