Parking Aid Module Connector End View - C4014

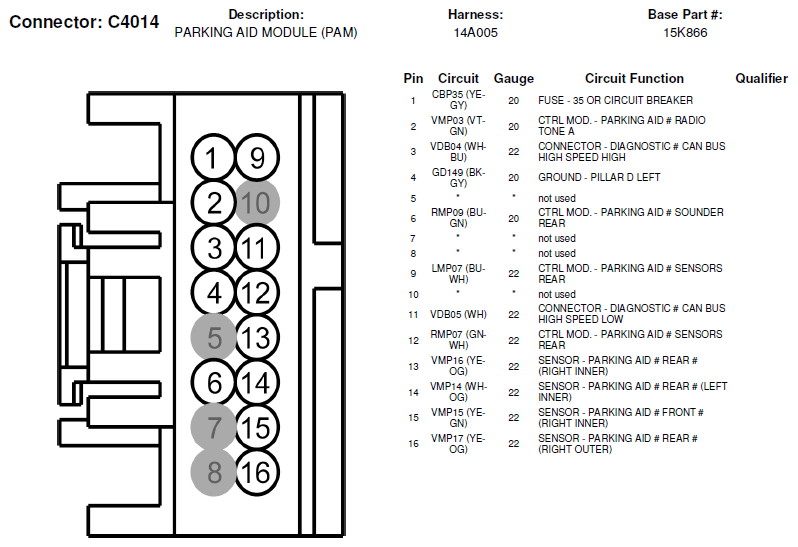

Fig 1: Parking Aid Module Connector End View (C4014)
G06413609Courtesy of FORD MOTOR CO.
