Throttle Body - 3.5L GTDI: Notes

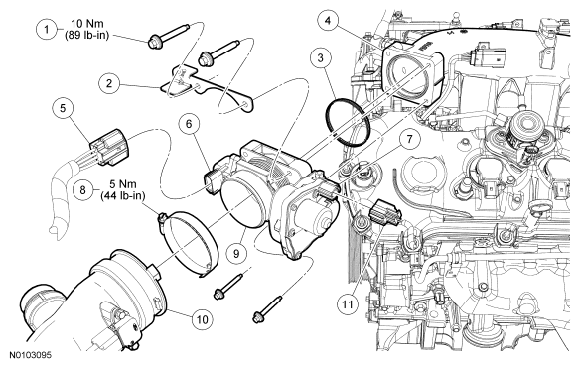

Fig 1: Throttle Body Replacement Components With Torque Specifications - 3.5L GTDI

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W503282	Throttle Body (TB) bolt (4 required)
2	3925	Throttle Position (TP) sensor shield bracket
3	9E936	TB  gasket
4	9425	Upper intake manifold
5	14A464	TP  sensor electrical connector
6	9E928	TP  sensor
7	9N825	Throttle Actuator Control (TAC)
8	-	Charge Air Cooler (CAC) outlet pipe-to- TB  clamp (part of 6F073)
9	9E927	TB
10	6F073	CAC  outlet pipe
11	14A464	TAC  electrical connector
