Driver Seat Module Connector End View - C341D
Driver Seat Module Connector End View - C341D

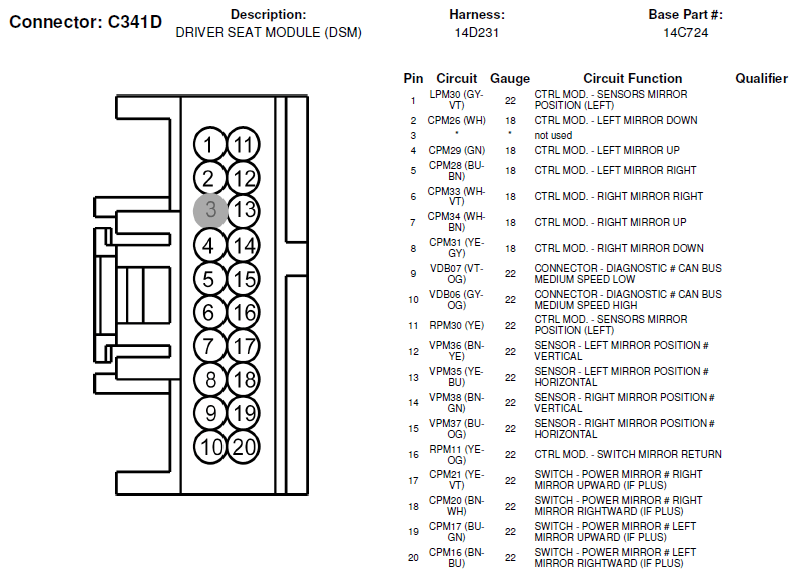

Fig 1: Driver Seat Module Connector End View (C341D)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
