Driver Side Front Seat Control Switch Connector
›
Driver Side Front Seat Control Switch Connector End View - C360A
Driver Side Front Seat Control Switch Connector End View - C360A

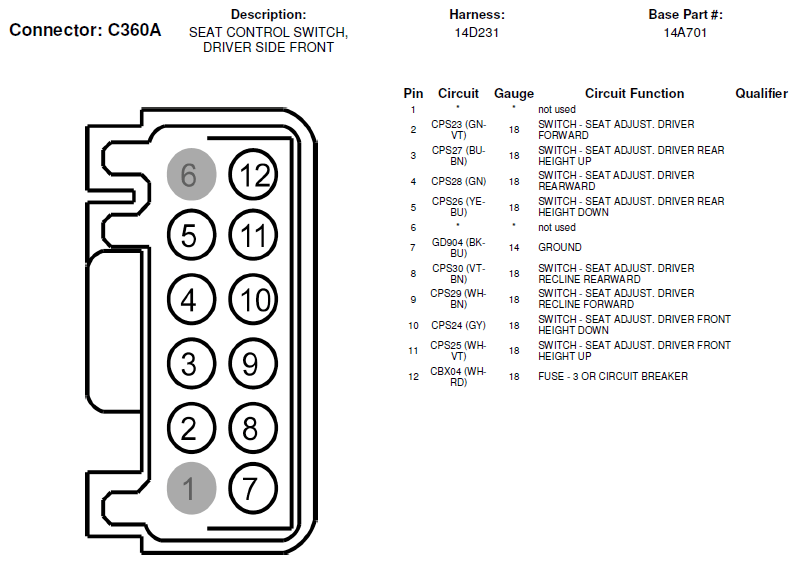

Fig 1: Driver Side Front Seat Control Switch Connector End View (C360A)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
