Four Wheel Drive Control Module Connector - C460

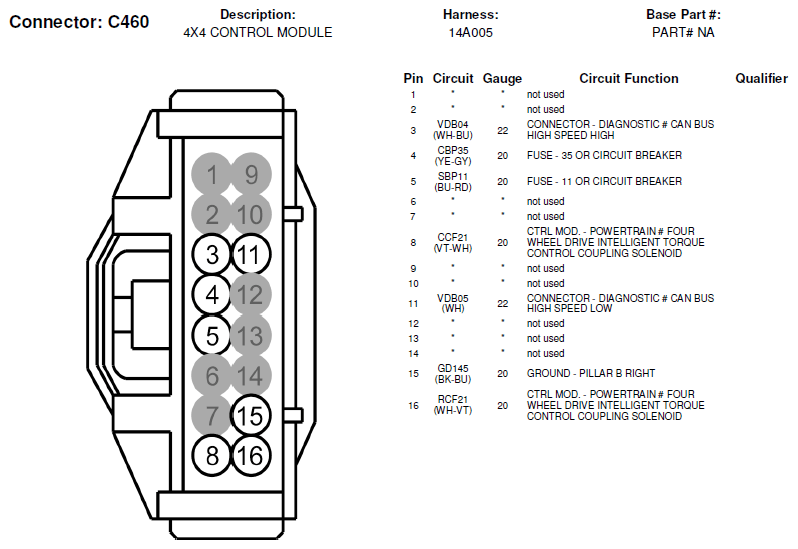

Fig 1: Four Wheel Drive Control Module Connector End View (C460)
G06374287Courtesy of FORD MOTOR CO.
