Fuel Pump Control Module Connector - C3239

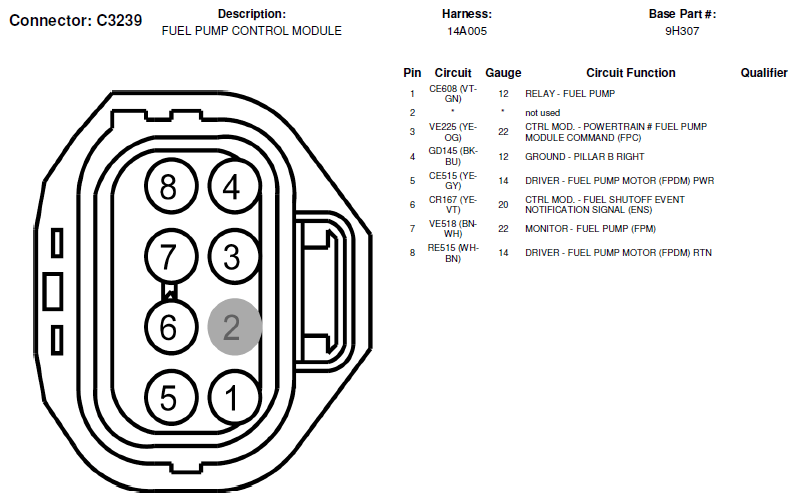

Fig 1: Fuel Pump Control Module Connector End View (C3239)
G06374489Courtesy of FORD MOTOR CO.
