Headlamp Control Module Connector - C1600
Headlamp Control Module Connector - C1600

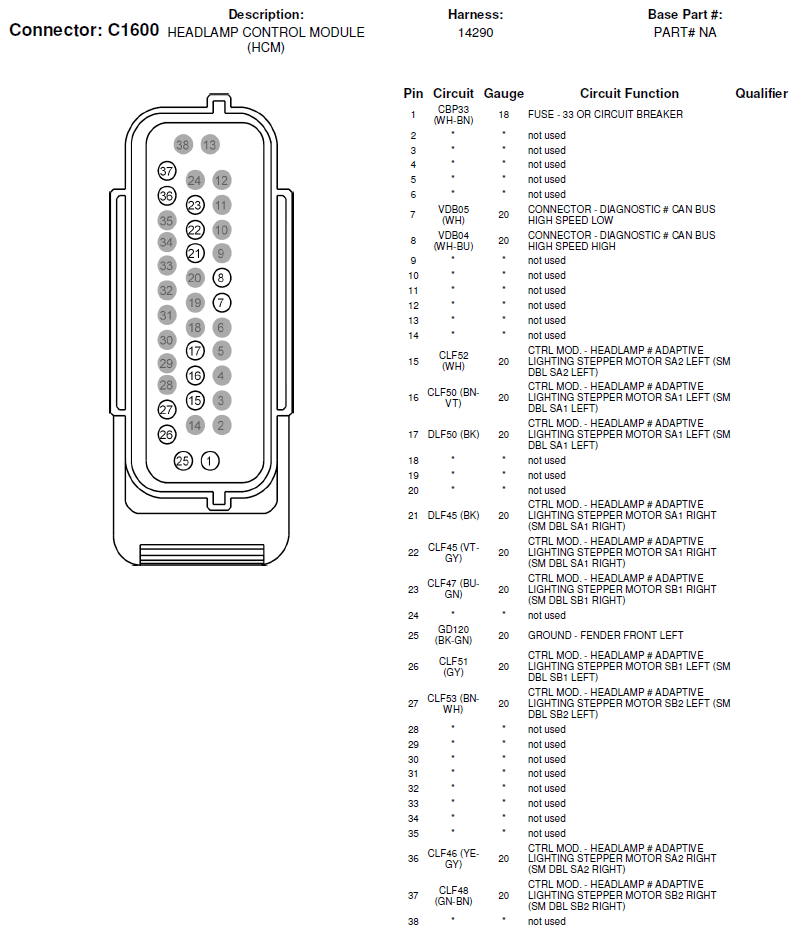

Fig 1: Headlamp Control Module Connector End View (C1600)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
