Audio Control Module Connector End View - C240A
Audio Control Module Connector End View - C240A

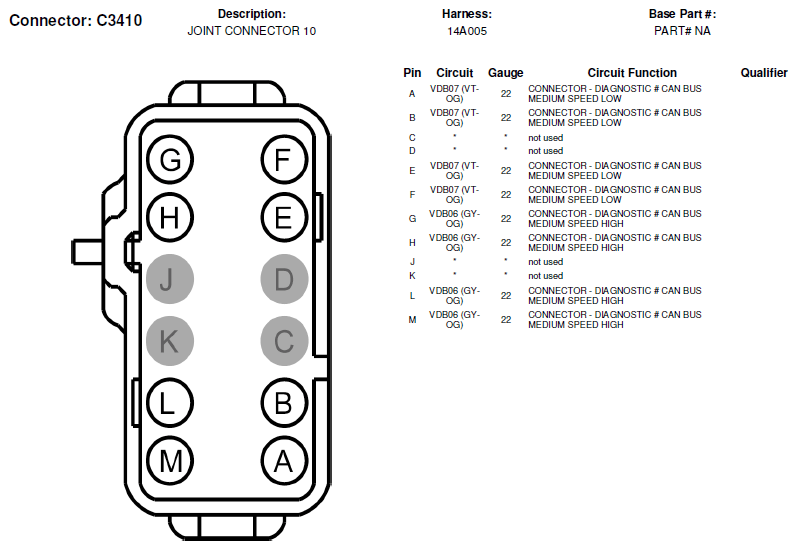

Fig 1: Joint Connector 10 Connector End View (C3410)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
