Power-Fold Seat Module Connector End View - C4250D

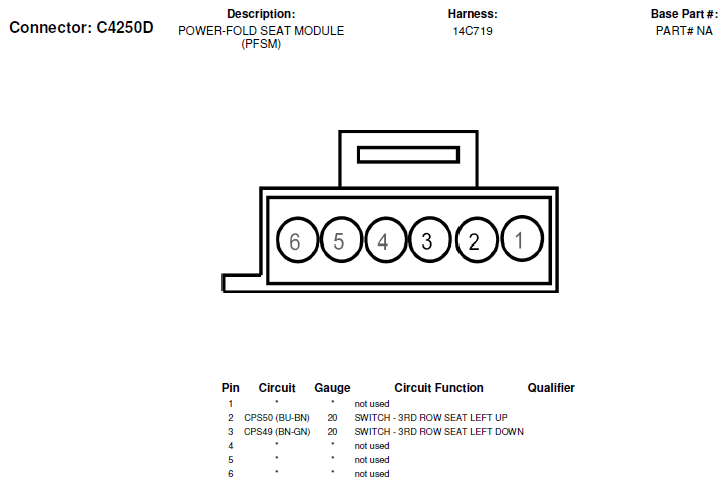

Fig 1: Power-Fold Seat Module Connector End View (C4250D)
G06374581Courtesy of FORD MOTOR CO.
