Rear Entertainment Module Connector
›
Rear Entertainment Module Connector End View - C2949A
Rear Entertainment Module Connector End View - C2949A

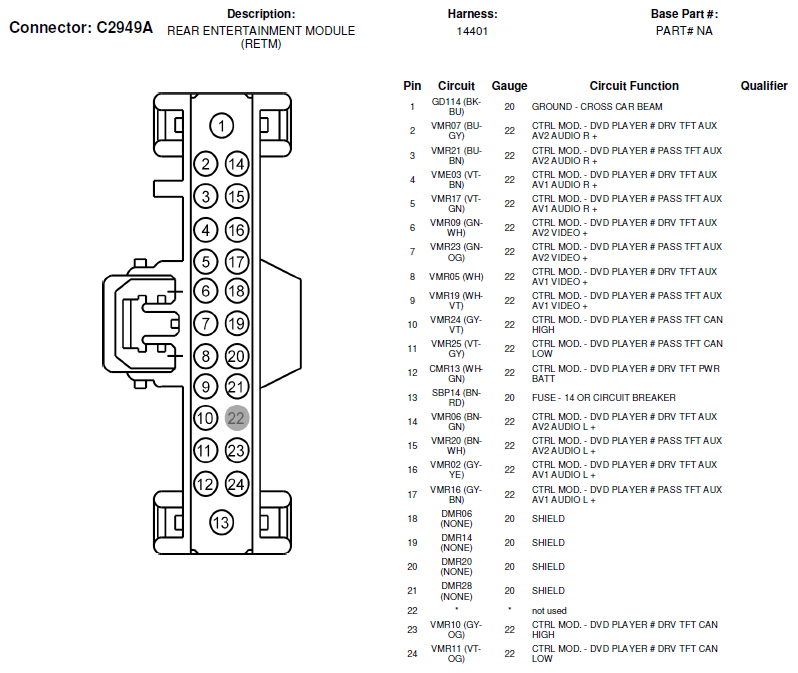

Fig 1: Rear Entertainment Module Connector End View (C2949A)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
