Rear Entertainment Module Connector End View - C2949B
Rear Entertainment Module Connector End View - C2949B

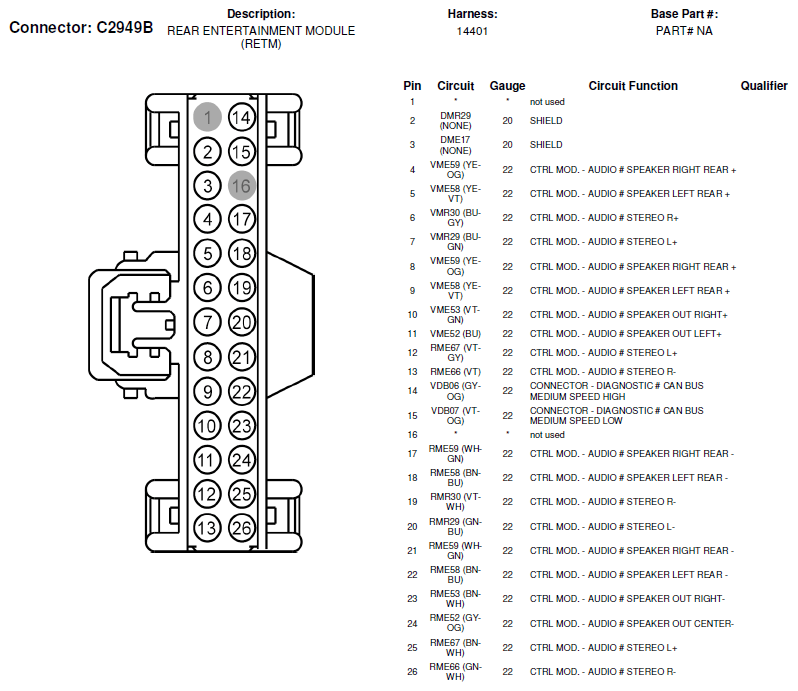

Fig 1: Rear Entertainment Module Connector End View (C2949B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
