Passenger Climate Controlled Seat Module-2 Connector End View - C3365C

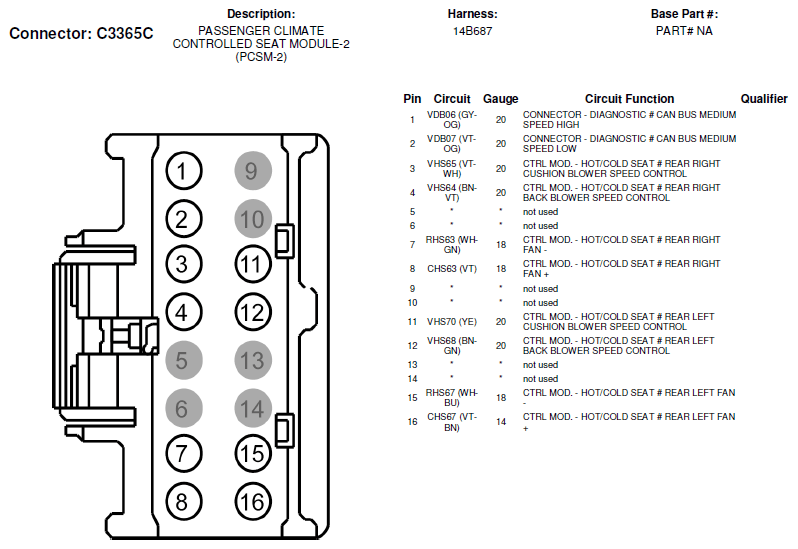

Fig 1: Passenger Climate Controlled Seat Module-2 Connector End View (C3365C)
G06374524Courtesy of FORD MOTOR CO.
