Audio Control Module Connector
›
Audio Control Module Connector End View - C240D
Audio Control Module Connector End View - C240D

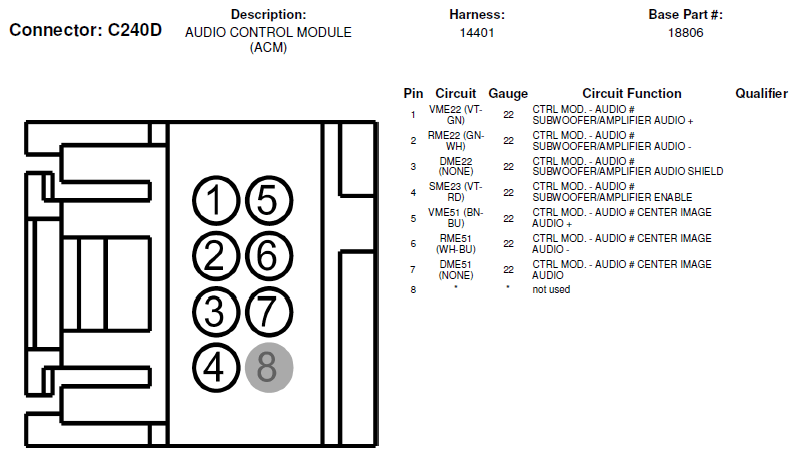

Fig 1: Audio Control Module Connector End View (C240D)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
