Powertrain Control Module Connector End View - C1381B

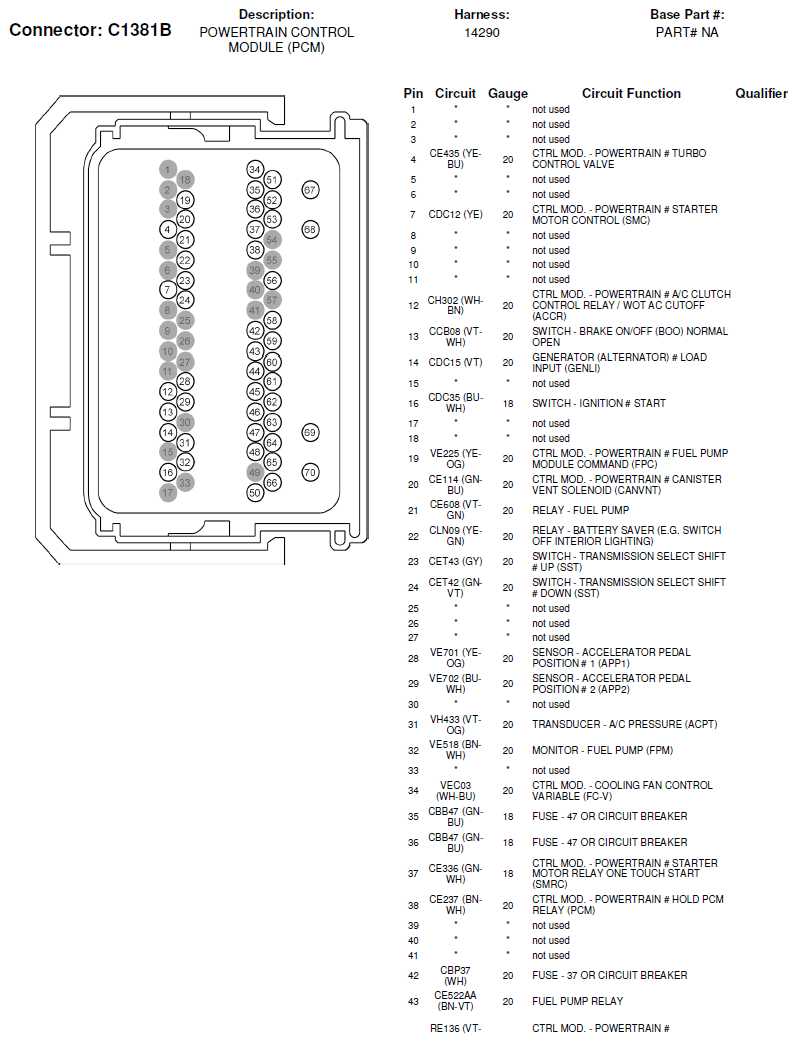

Fig 1: Powertrain Control Module Connector End View (C1381B) (1 Of 2)
G06374375Courtesy of FORD MOTOR CO.

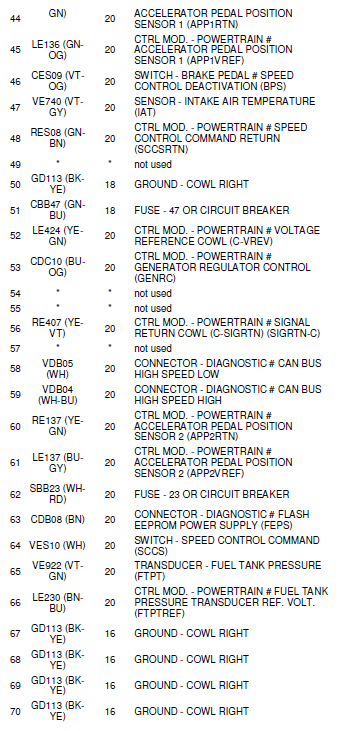

Fig 2: Powertrain Control Module Connector End View (C1381B) (2 Of 2)
G06374376Courtesy of FORD MOTOR CO.
