Powertrain Control Module Connector End View - C1381T
Powertrain Control Module Connector End View - C1381T

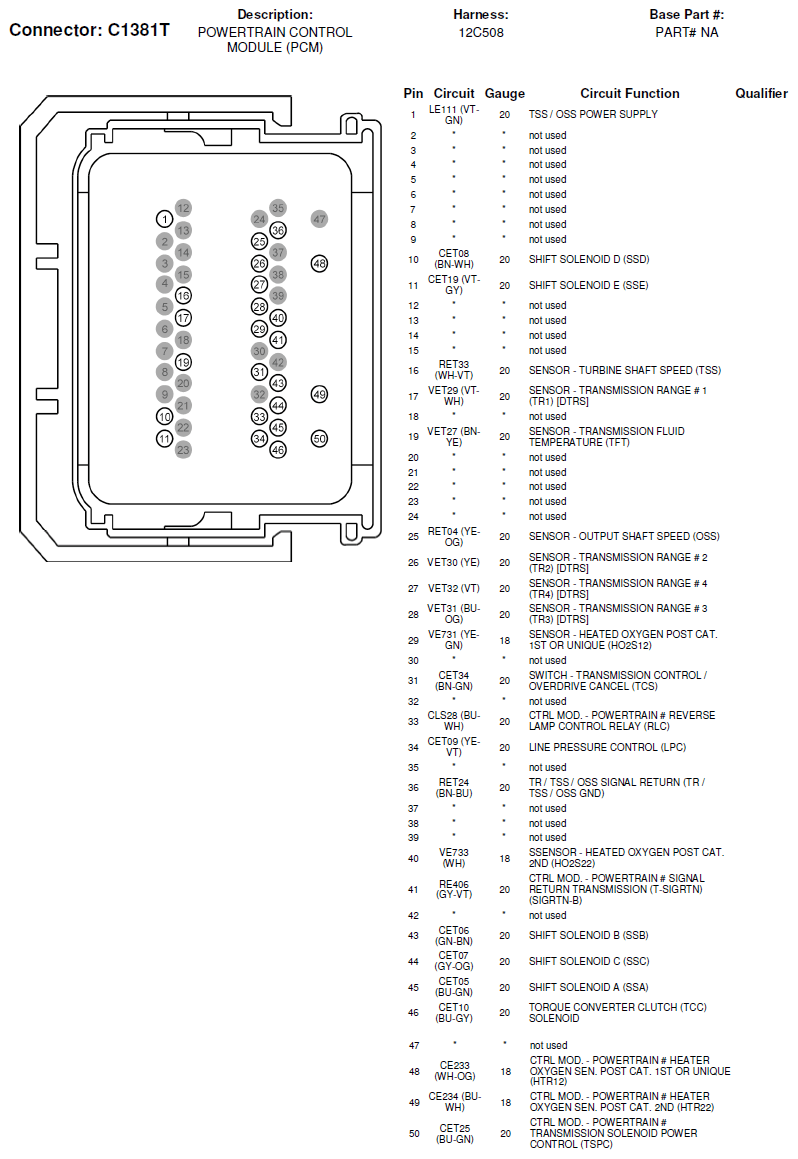

Fig 1: Powertrain Control Module Connector End View (C1381T)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
