Master Window Control Switch Connector - C504
Master Window Control Switch Connector - C504

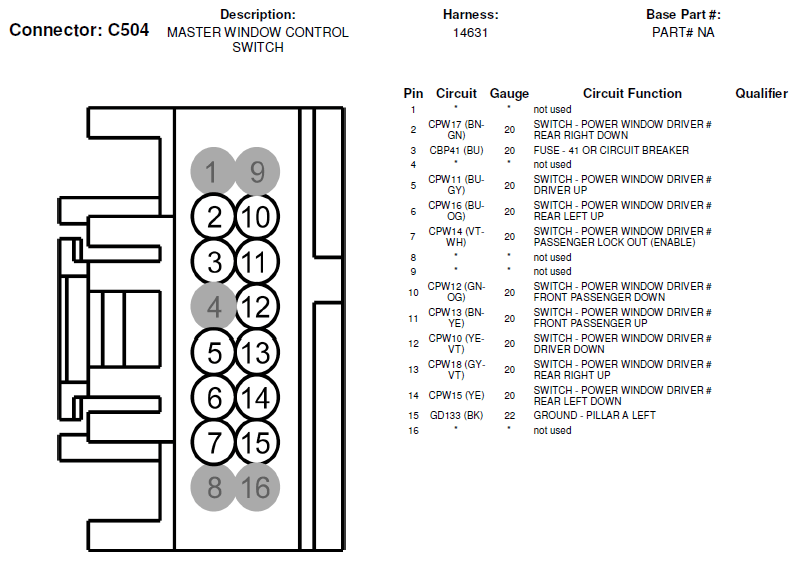

Fig 1: Master Window Control Switch Connector End View (C504)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
