Sunshade Module Connector - C9040
Sunshade Module Connector - C9040

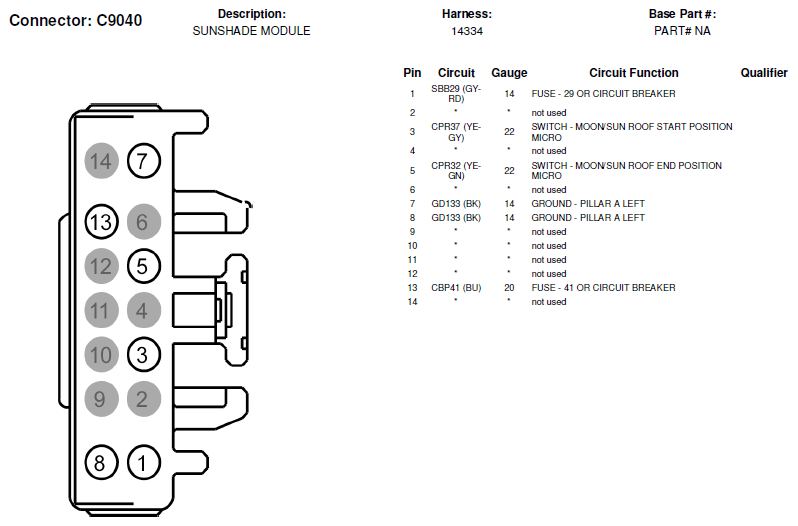

Fig 1: Sunshade Module Connector End View (C9040)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
