Passenger Climate Controlled Seat Module-2 Connector End View - C3365B

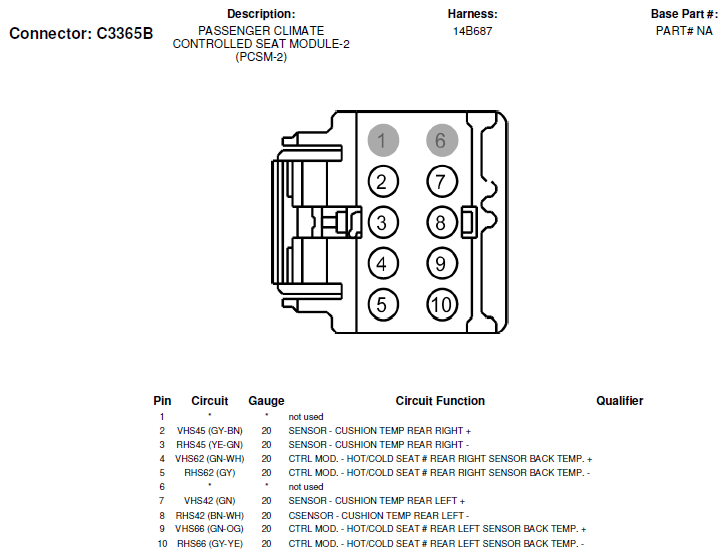

Fig 1: Passenger Climate Controlled Seat Module-2 Connector End View (C3365B)
G06374523Courtesy of FORD MOTOR CO.
