Master window control switch: Schematic

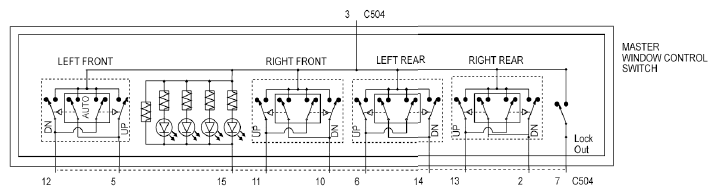

Fig 1: Master Window Control Switch - Schematic
G06380829Courtesy of FORD MOTOR CO.
