Roof opening panel control switch: Schematic

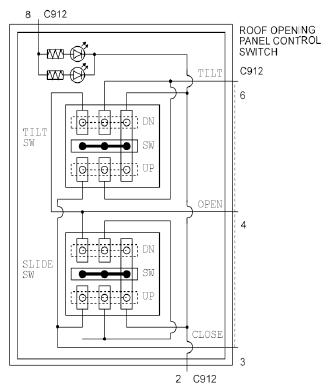

Fig 1: Roof Opening Panel Control Switch - Schematic
G06380845Courtesy of FORD MOTOR CO.
