Audio Digital Signal Processing Module Connector
›
Audio Digital Signal Processing Module Connector End View - C4348B
Audio Digital Signal Processing Module Connector End View - C4348B

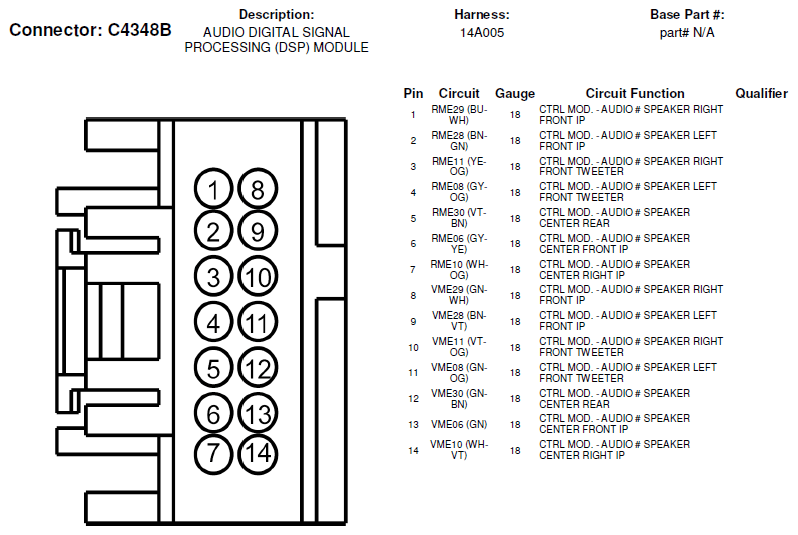

Fig 1: Audio Digital Signal Processing Module Connector End View (C4348B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
