Liftgate Module / Trunk Module Connector End View - C4174B

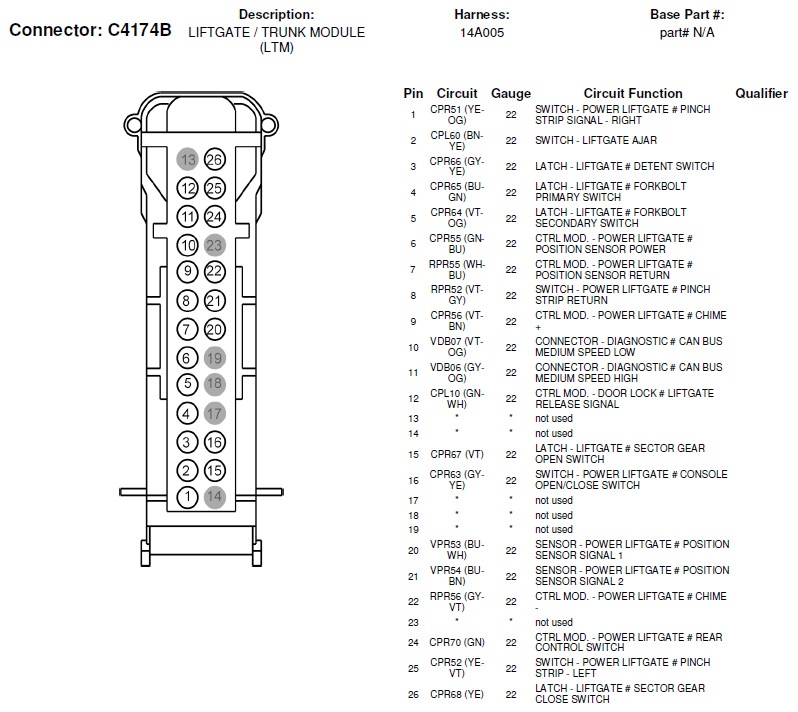

Fig 1: Liftgate Module / Trunk Module Connector End View (C4174B)
G06287369Courtesy of FORD MOTOR CO.
