DATC HVAC Module Connector End View - C228A

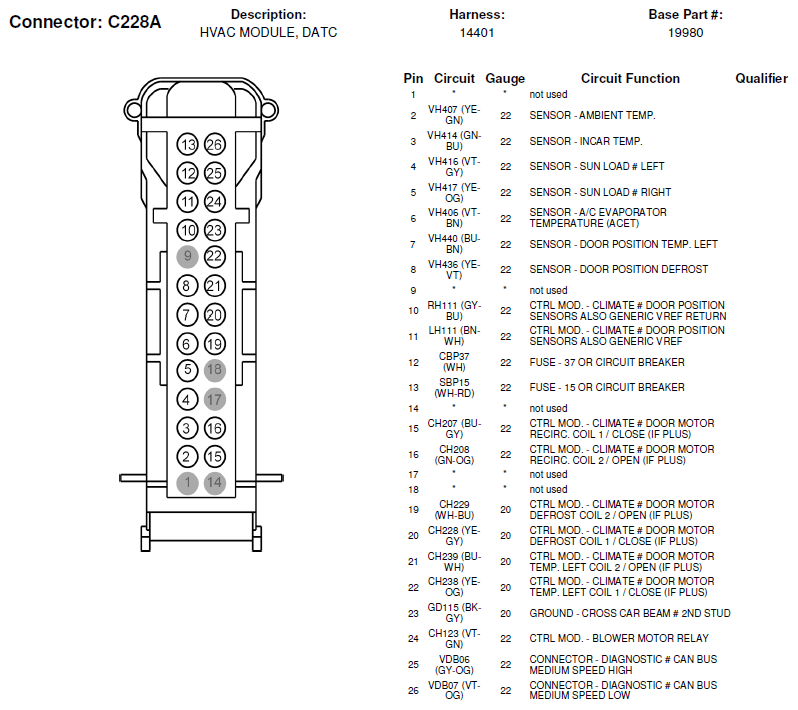

Fig 1: DATC HVAC Module Connector End View (C228A)
G06287120Courtesy of FORD MOTOR CO.
