DATC HVAC Module Connector
›
DATC HVAC Module Connector End View - C228B
DATC HVAC Module Connector End View - C228B

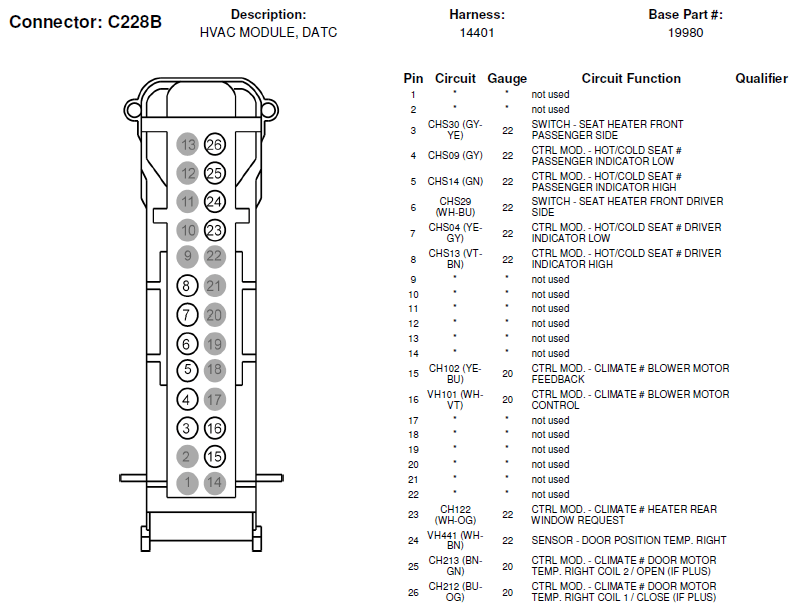

Fig 1: DATC HVAC Module Connector End View (C228B)
Courtesy of FORD MOTOR CO.
