Dual Climate Controlled Seat Module Connector End View - C3036C

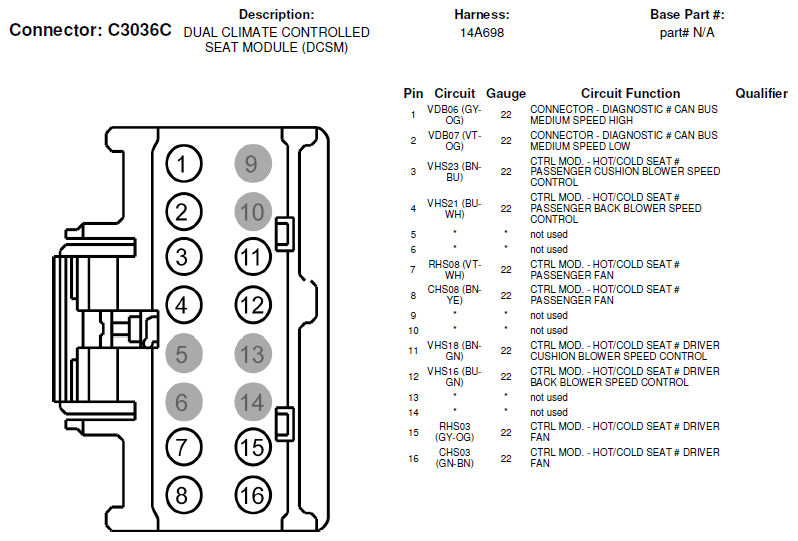

Fig 1: Dual Climate Controlled Seat Module Connector End View (C3036C)
G06287306Courtesy of FORD MOTOR CO.
