EMTC HVAC Module Connector
›
EMTC HVAC Module Connector End View - C2357A
EMTC HVAC Module Connector End View - C2357A

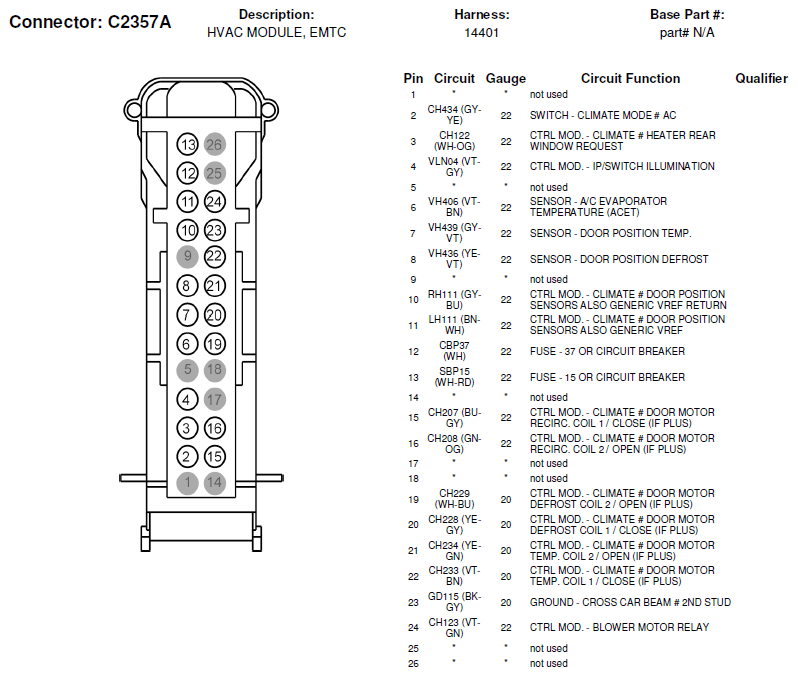

Fig 1: EMTC HVAC Module Connector End View (C2357A)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
