Front Controls Interface Module Connector End View - C2403

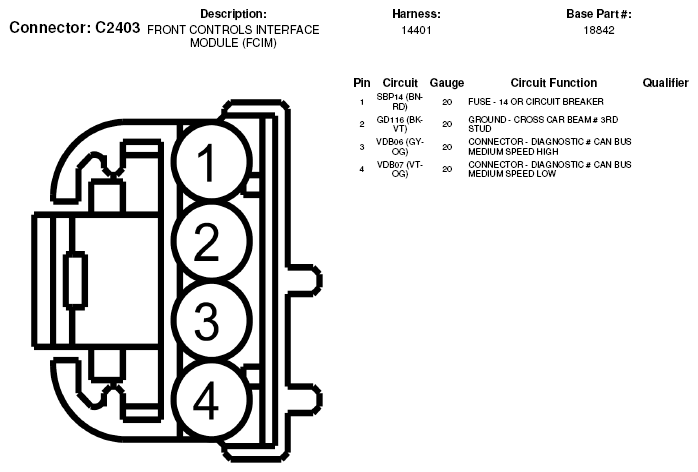

Fig 1: Front Controls Interface Module Connector End View (C2403)
G06353221Courtesy of FORD MOTOR CO.
