Front Controls Interface Module Connector End View - C2408

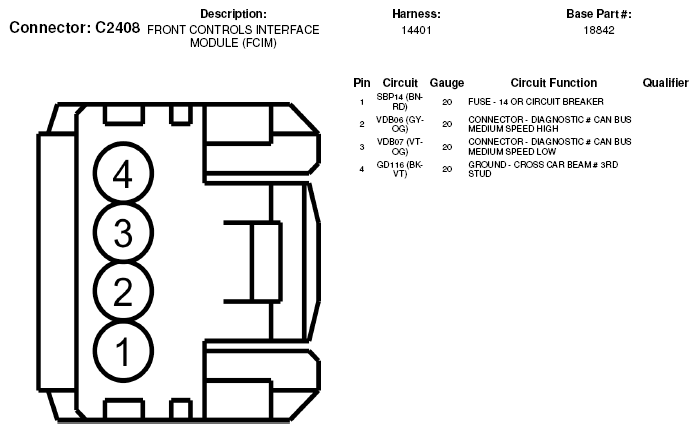

Fig 1: Front Controls Interface Module Connector End View (C2408)
G06353223Courtesy of FORD MOTOR CO.
