Front Display Interface Module Connector End View - C2410

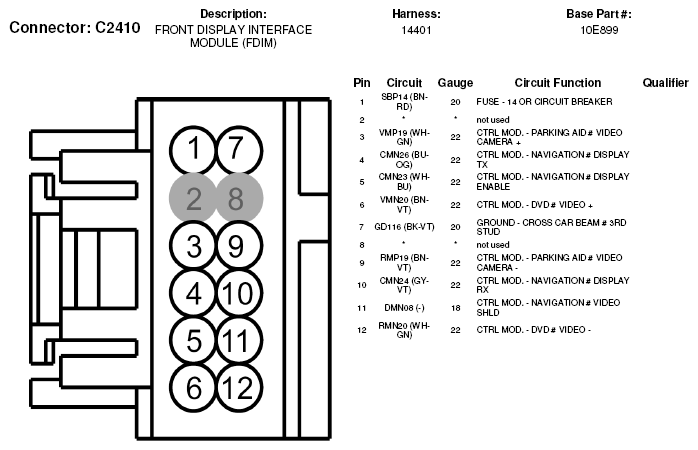

Fig 1: Front Display Interface Module Connector End View (C2410)
G06353224Courtesy of FORD MOTOR CO.
