Restraints Control Module Connector End View - C310B

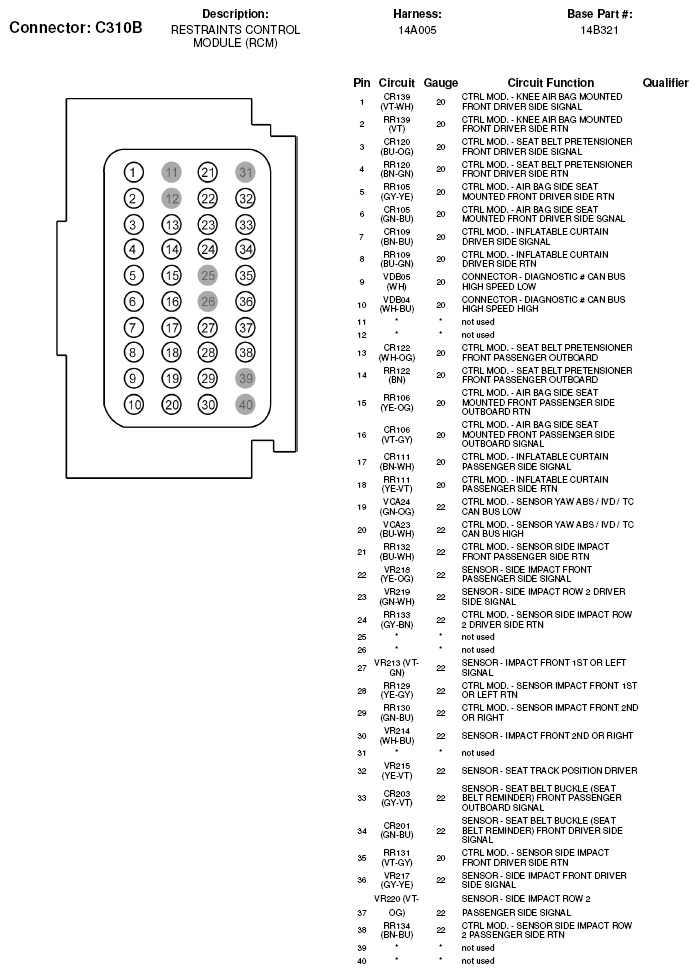

Fig 1: Restraints Control Module Connector End View (C310B)
G06353009Courtesy of FORD MOTOR CO.
