Special Tool(s)

SPECIAL TOOL DESCRIPTION TABLE

Courtesy of FORD MOTOR CO.

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

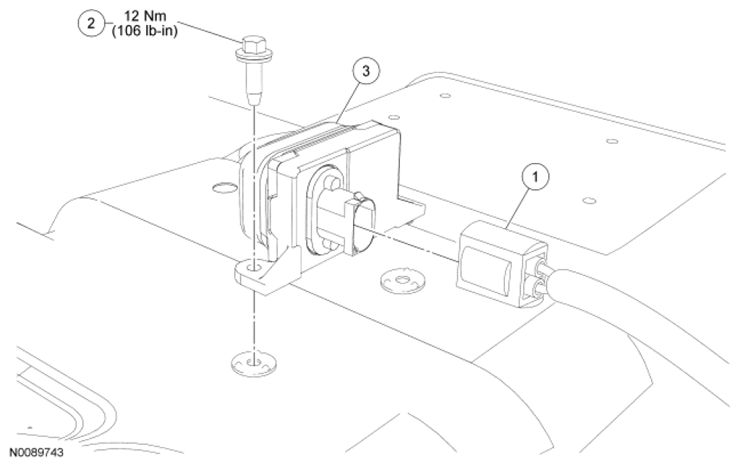

Fig 1: Stability Control Sensor Cluster Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION TABLE

Item	Part Number	Description
1	-	Stability control sensor cluster electrical connector (part of 14A005)
2	W710898	Stability control sensor cluster bolt (2 required)
3	3C187	Stability control sensor cluster
