Strut and Spring Assembly: Notes
WARNING: This page is about a different car, the 2010 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

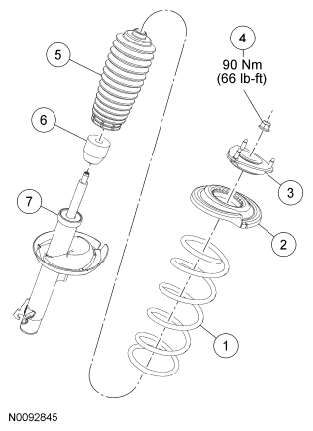

Courtesy of FORD MOTOR CO. PART DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
5310 |
Spring |
| 2 |
18198 |
Spring upper seat and bearing assembly |
| 3 |
3K155 |
Upper mount bearing |
| 4 |
W711949 |
Strut rod nut |
| 5 |
18A047 |
Dust boot |
| 6 |
3025 |
Jounce bumper |
| 7 |
W712503 |
Strut |
