Strut and Spring Assembly: Notes
WARNING: This page is about a different car, the 2010 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

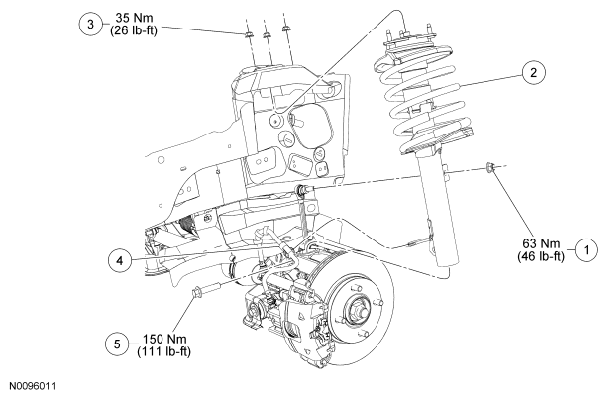

Courtesy of FORD MOTOR CO. PART DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
W713760 |
Stabilizer bar link upper nut |
| 2 |
18K001 LH/18045 RH |
Strut and spring assembly |
| 3 |
W520102 |
Strut upper nut (3 required) |
| 4 |
- |
Brake hose |
| 5 |
W711725 |
Wheel knuckle-to-strut bolt |
