Cruise-Control Module (C-CM): Installation

Bracket

1. Install the 3 bolts and the C-CM bracket. Tighten the fasteners in the sequence shown in the illustration.
   • Tighten the bolts to 8 Nm (71 lb-in).

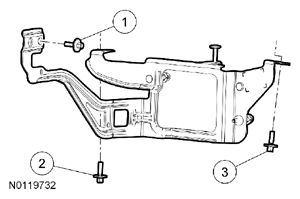

     Fig 1: Identifying C-CM Bracket Mounting Bolts

     Courtesy of FORD MOTOR CO.

   C-CM or bracket

   NOTE: The vertical and horizontal alignment procedures need to be carried out to align the sensor.
NOTE: If one plastic grommet breaks while the C-CM is being installed, a new grommet should be installed.
2. Firmly apply pressure to the C-CM so that it seats completely in the grommets.
3. Once the C-CM is installed, pull the C-CM to confirm that all 3 ball studs are fully seated in the grommets.
4. Connect the C-CM connector.
5. Do not install the front bumper cover until the alignment procedures are carried out.
   • Vertically and horizontally align the C-CM. For additional information, refer to CRUISE CONTROL MODULE (C-CM) (WITH SENSOR) ADJUSTMENT .
