Audio Control Module Connector End View - C240B

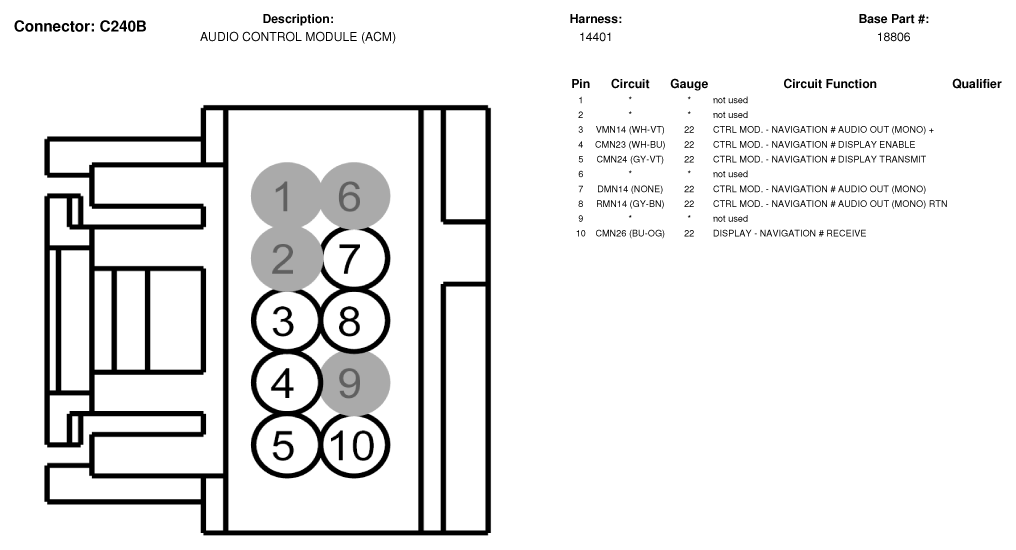

Fig 1: Audio Control Module Connector End View (C240B)
G07329813Courtesy of FORD MOTOR CO.
